Kali Linux VirtualBox Setup Guide for Windows 10 and 11

2

Setting up Kali Linux VirtualBox on Windows 10 and 11 is the quickest way to run this powerful penetration testing distribution without dual-booting or permanently altering your system. The pre-built VirtualBox image allows you to have Kali Linux vBox running within minutes, making it perfect for cybersecurity professionals, students, and ethical hackers.

What You’ll Need

Before starting your Kali vBox installation, ensure you have:

• Windows 10 or Windows 11 (64-bit) with at least 4GB RAM (8GB recommended)
• 80GB free storage space (more recommended for additional tools and projects)
• Stable internet connection for downloads
• Administrator privileges on your Windows machine

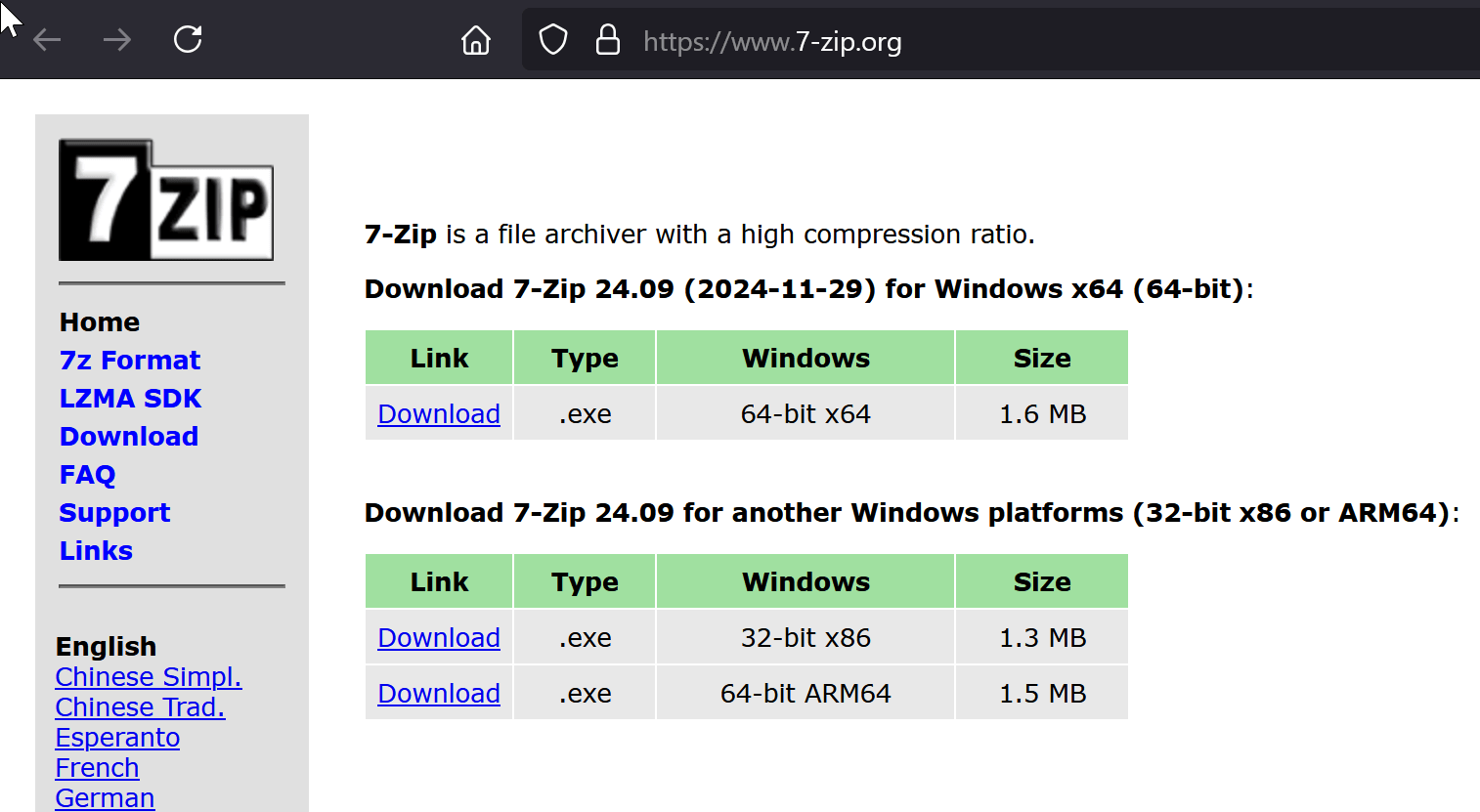

Step 1: Download and Install 7-Zip

First, you’ll need 7-Zip to extract the compressed Kali vBox image:

Visit https://www.7-zip.org/

1. Download the appropriate version for your Windows system (32-bit or 64-bit)
2. Run the installer with administrator privileges
3. Complete the installation using default settings

Step 2: Install Oracle VirtualBox

Oracle VirtualBox is essential for running your Kali Linux virtual machine:

1. Navigate to https://www.virtualbox.org/
2. Click “Downloads” and select “Windows hosts”
3. Download the VirtualBox installer
4. Run the installer as administrator
5. Follow the installation wizard, accepting default settings
6. Restart your computer when prompted

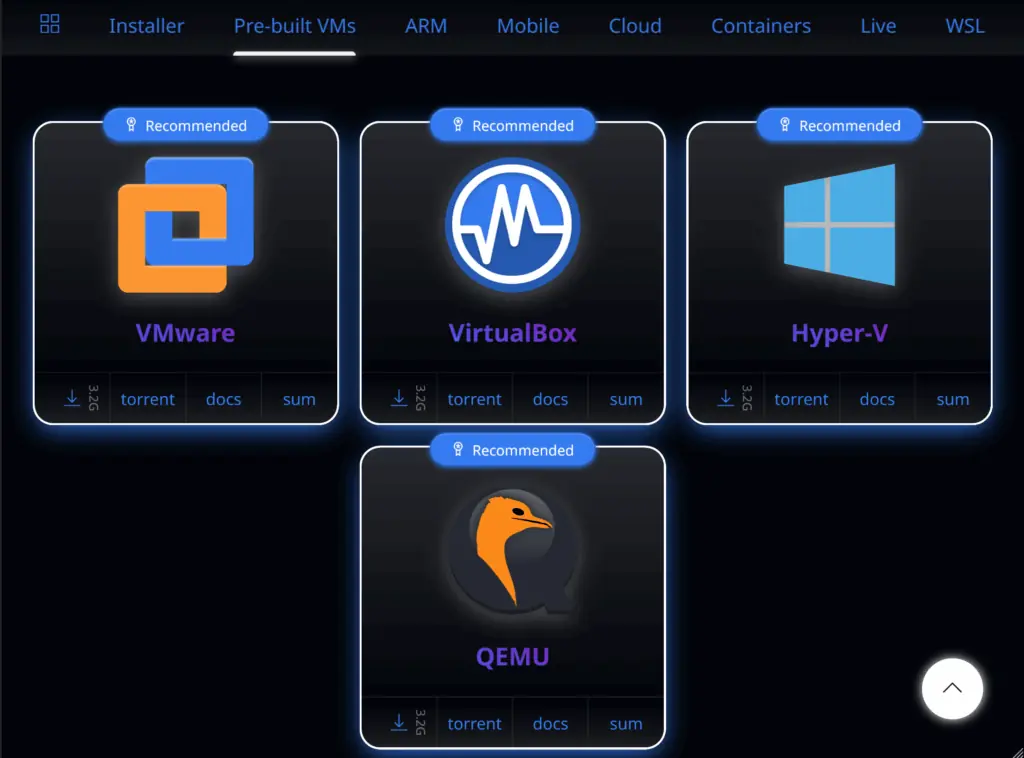

Step 3: Download the Pre-built Kali Linux VirtualBox Image

The official Kali Linux VirtualBox image saves significant setup time:

1. Go to https://www.kali.org/get-kali/#kali-virtual-machines
2. Under “Pre-built Virtual Machines,” select the VirtualBox option
3. Download the latest Kali Linux*.7z file (approximately 3.2G as shown below)
4. Save it to an easily accessible location on your hard drive

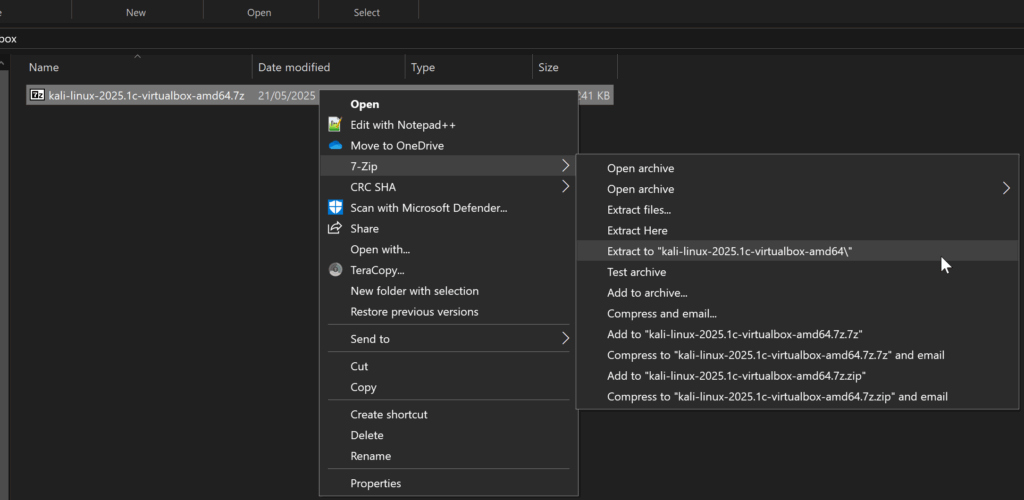

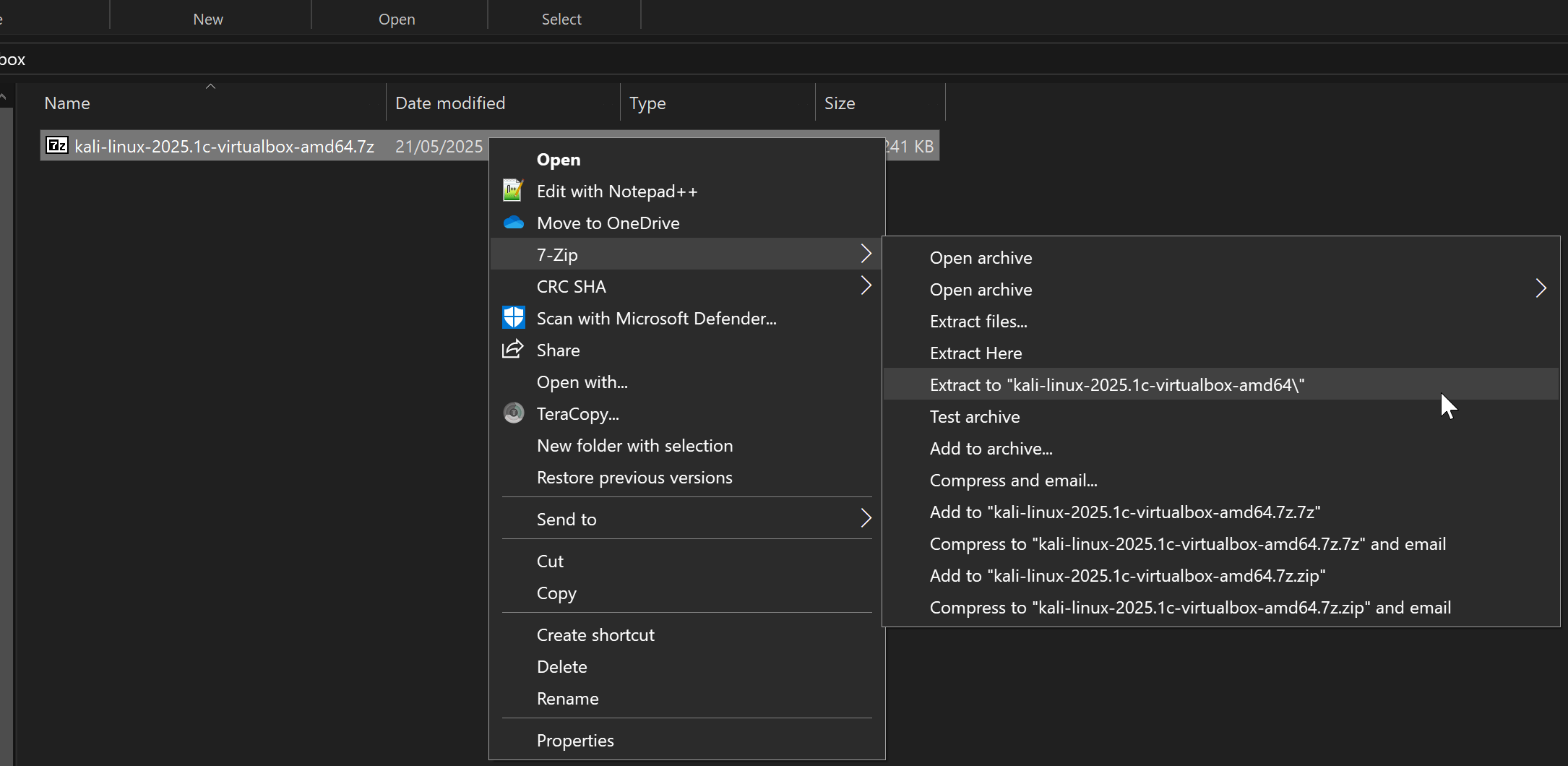

Step 4: Extract the VirtualBox Image

Using 7-Zip to extract the VirtualBox files:

1. Right-click the downloaded .7z file
2. Select “7-Zip” → “Extract Here”
3. Wait for extraction to complete (this may take several minutes)
4. You should now see a .vbox file and a .vdi file

Step 5: Import the Kali Linux VirtualBox Image

Now to import your Kali Linux virtual machine:

1. Open Oracle VirtualBox Manager

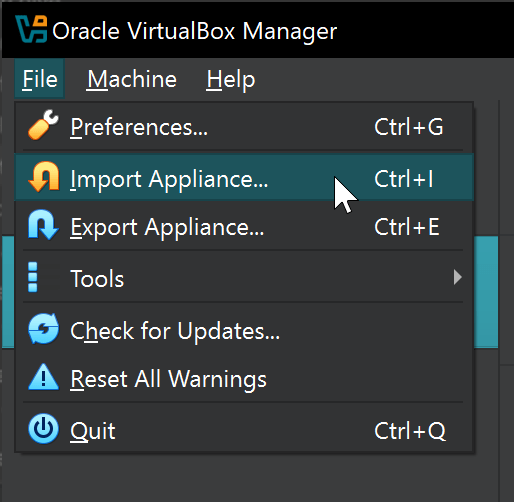

2. Click “File” → “Import Appliance” or press Ctrl+I
3. Browse and select the extracted .vbox file
4. Click “Next” to review import settings
5. Adjust settings if needed (recommended: increase RAM to 4096MB if available)
6. Click “Import” and wait for the process to complete

Step 6: Configure Your Kali Linux VirtualBox Settings

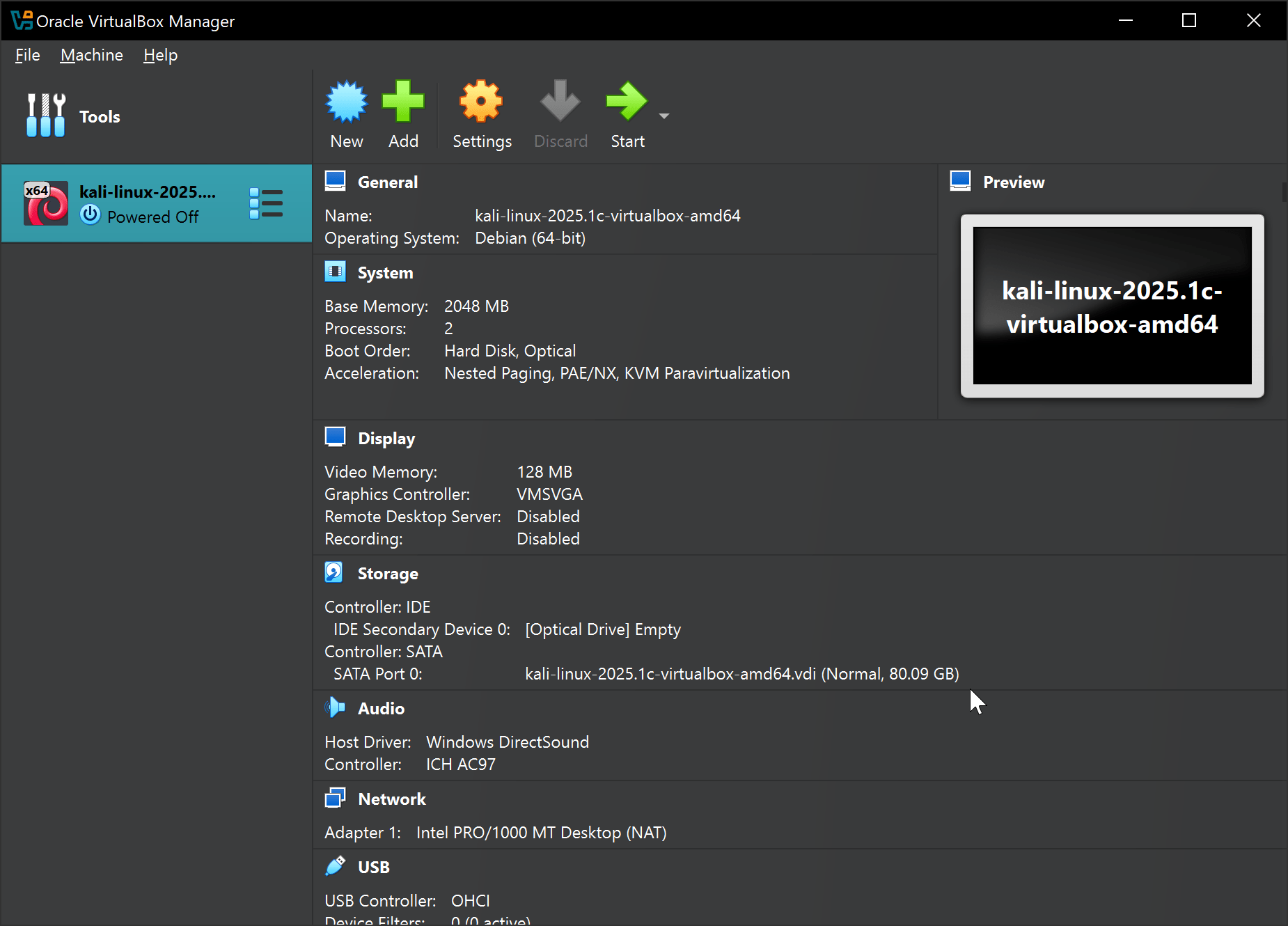

Default import of Kali Linux will show the following settings screen. If you don’t want to change anything, simply Press Start Button and login with kali/kali username and password.

If you need littkle more performance out of it, optimise these settings:

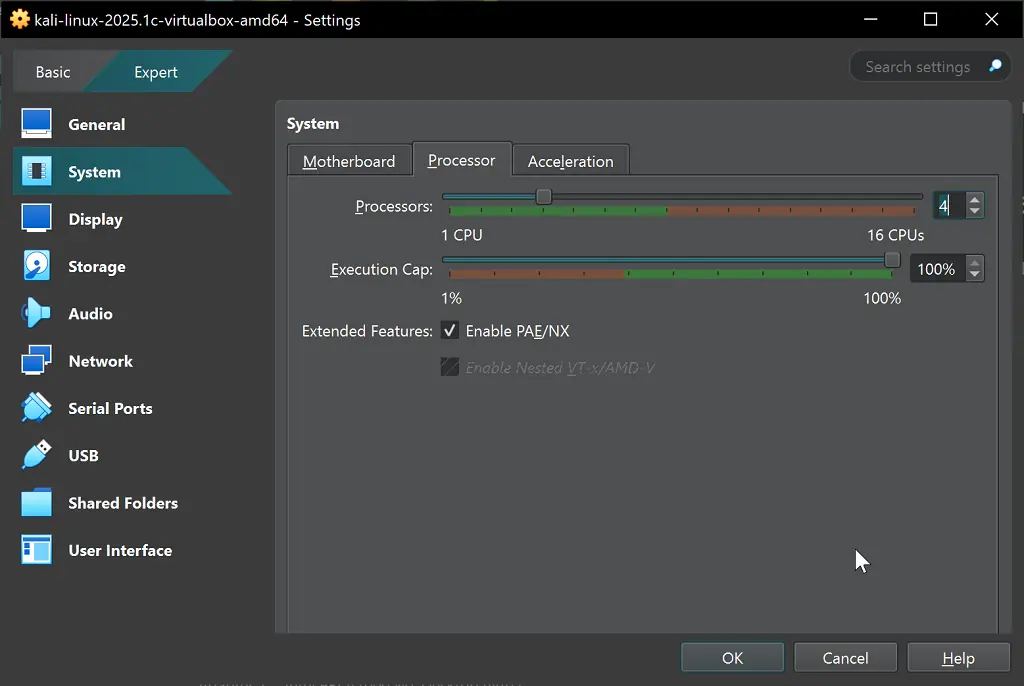

System Configuration

• Processors: Allocate 2-4 CPU cores for better performance

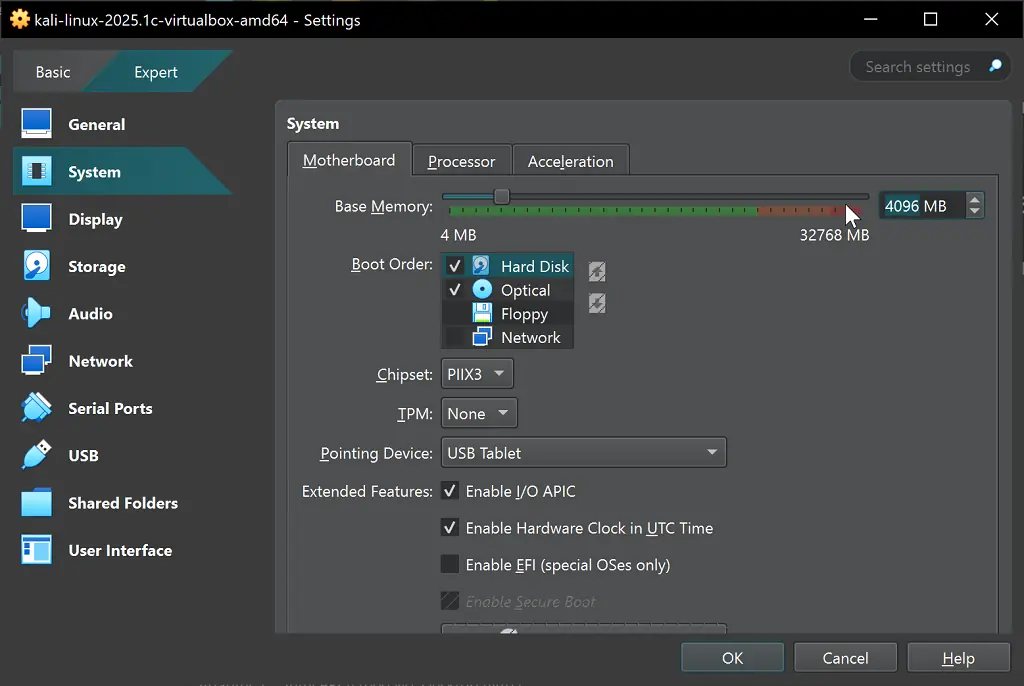

• Memory: Set to 4096MB (4GB) for optimal experience

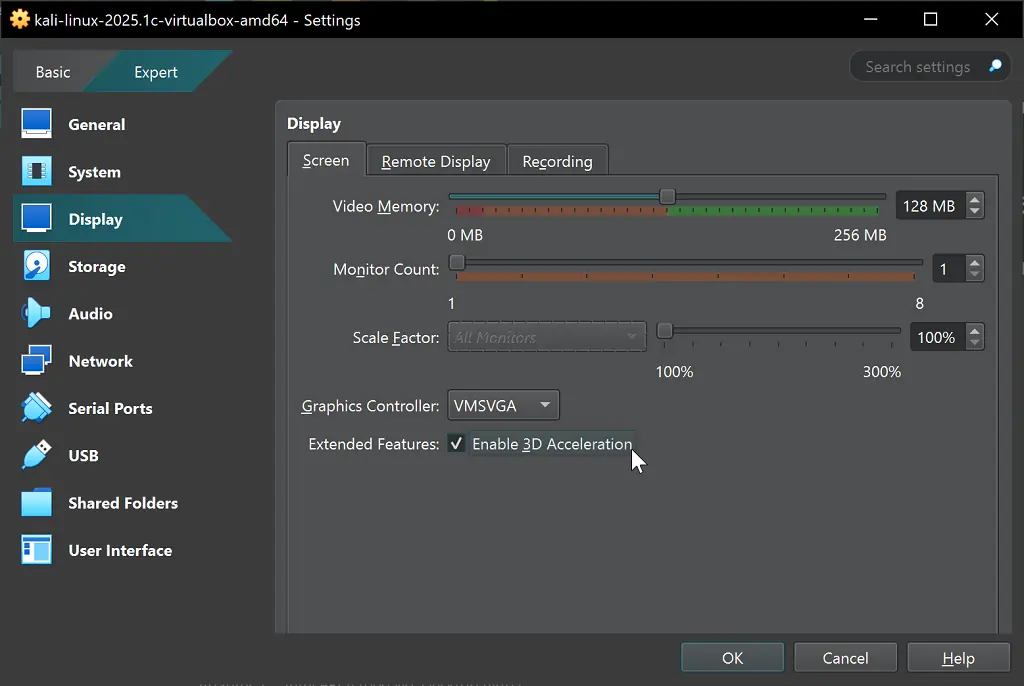

Display Settings

• 3D Acceleration: Enable for improved desktop experience
• Scale Factor: Adjust to 100% for proper screen scaling (if you have a massive monitor, you might want to change it, but for now we left it to default)

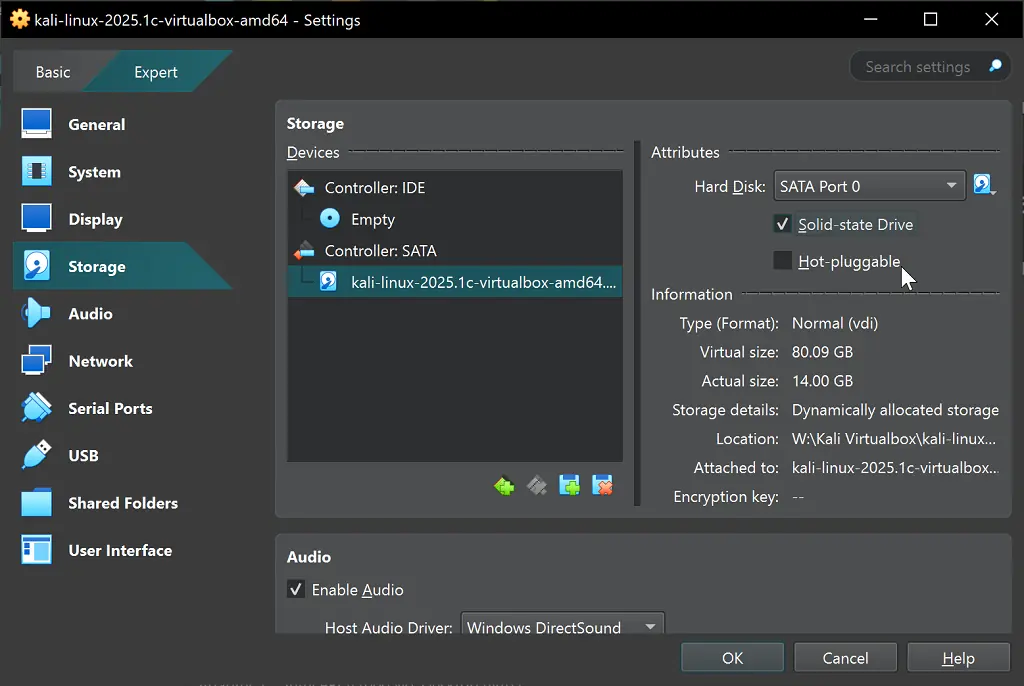

Storage Configuration

• Consider enabling “Solid-state Drive” option for faster performance

Network Setup

• Default NAT configuration works for most Kali Linux scenarios (you have your Host machine’s IP address)
• For advanced networking, consider bridged adapter mode (you get IP from Router or ISP)

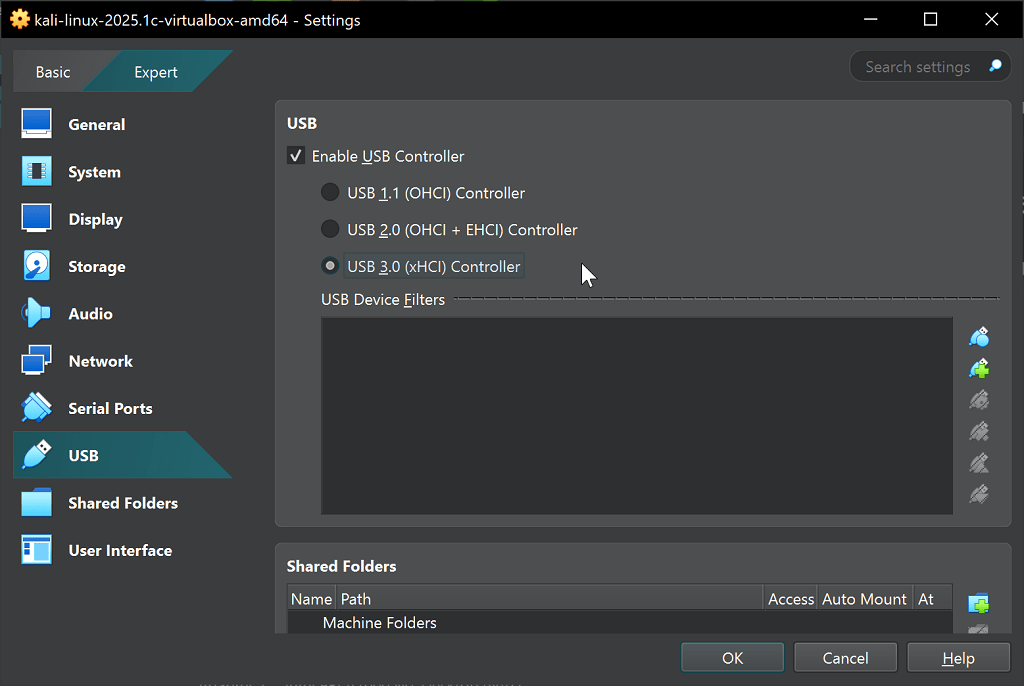

USB Speed

• Change USB to 3.0 (xHCI) for higher speed BUS if you plan to plug in USB directly into your Kali Linux image.

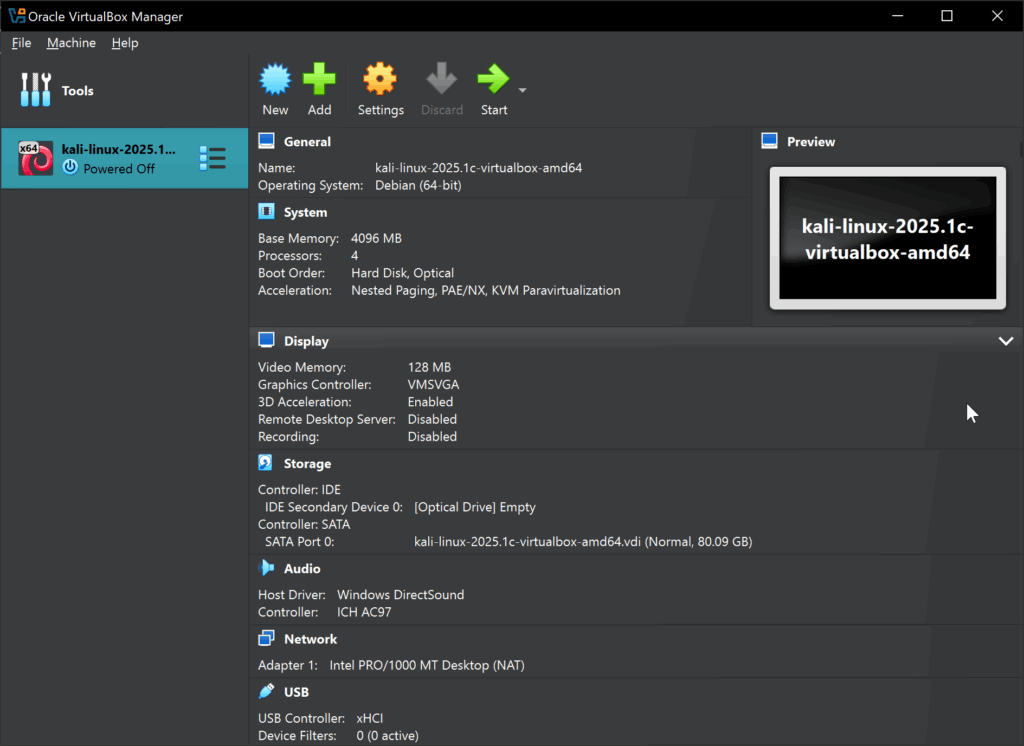

Once you’ve updated everything, your Settings screen for the Virtualbox image will look something like this:

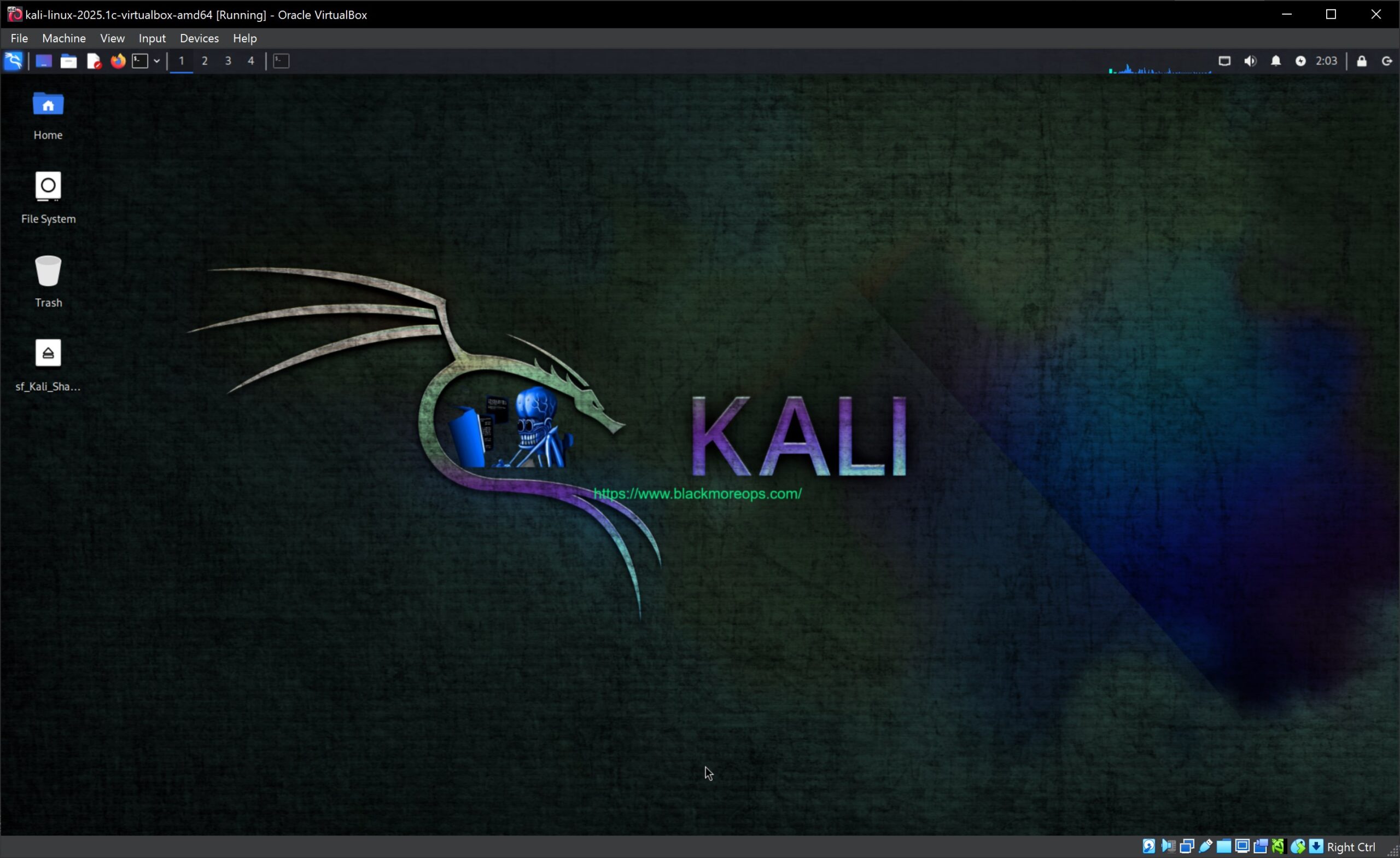

Step 7: Start Your Kali Linux VirtualBox Machine

Launch your Kali Linux virtual environment:

1. Select your Kali Linux virtual machine in VirtualBox Manager
2. Click the “Start” button or press Ctrl+S
3. Allow the virtual machine to boot completely
4. You’ll reach the Kali Linux login screen

Default Login Credentials

Your  VirtualBox installation comes with default credentials:

• Username: kali
• Password: kali

Post-Installation Steps

Once your Kali Linux is running:

1. Update the system: Run sudo apt update && sudo apt upgrade -y
2. Install Guest Additions: Enhances integration between host and guest systems [Check this post]
3. Configure shared folders: Enable file sharing between Windows and Kali Linux [Check this post]
4. Create snapshots: Save clean states of your Kali installation

Troubleshooting Common Issues

Slow Performance

• Increase allocated RAM beyond 2048MB
• Allocate more CPU cores to the Kali VirtualBox image

Display Issues

• Install Guest Additions for proper screen resolution
• Enable 3D acceleration in display settings
• Adjust scale factor for high-DPI displays
• Add more than 128MB Video memory or consider setting high performance for Virtualbox

Network Connectivity Problems

• Verify NAT or bridged adapter configuration
• Reset network settings in VirtualBox
• Check Windows firewall settings
• Consider using a Network Card directly into Kali Linux vBox image.

Benefits of Using Kali Linux vBox

Running Kali Linux vBox offers several advantages:

• Isolation: Your host Windows system remains untouched
• Snapshots: Save multiple states of your penetration testing environment
• Easy removal: Delete the virtual machine without affecting Windows
• Resource control: Allocate specific amounts of RAM and storage
• Multiple instances: Run several Kali Linux vBox machines simultaneously

Security Considerations

When using Kali Linux vBox for security testing:

• Only use on networks you own or have explicit permission to test
• Keep your Kali Linux vBox installation updated
• Use snapshots before making significant changes
• Implement proper network isolation during testing
• Change default passwords

Conclusion

Setting up Kali VirtualBox on Windows 10 and 11 provides an excellent platform for learning cybersecurity, penetration testing, and digital forensics. The pre-built image approach means you can have a fully functional Kali Linux VirtualBox environment running in under 30 minutes. Whether you’re a cybersecurity professional, student, or enthusiast, this Kali vBox setup offers the flexibility and power you need for security testing in a safe, controlled environment. Remember to keep your Kali VirtualBox installation updated and always follow ethical guidelines when using penetration testing tools. Check Kali Linux posts to find something you might want to do.
